Tile
component

Tiles are customizable buttons that allow staff to complete actions quickly. Think of them as shortcuts--adding a 10% discount to an order, for example. Tiles provide contextual information and let merchants quickly access workflows, actions, and information from the smart grid and the top of detail pages. They’re dynamic and can change based on surrounding context, such as what’s in the cart.

Note

The appearance of destructive has been updated as of POS 10.0.0 to appear as an active state.

string
required

The text set on the main label of the tile.

number

The number value displayed in the top right corner of the tile.

boolean

Sets whether or not the tile is in a red destructive appearance.

boolean

Sets whether or not the tile can be tapped.

() => void

The callback that is executed when the tile is tapped.

string

The text set on the secondary label of the tile.

Was this section helpful?

Render a tile on smart grid

import React from 'react'
import { Tile, reactExtension, useApi } from '@shopify/ui-extensions-react/point-of-sale'

const TileComponent = () => {
const api = useApi()
return (
<Tile
title="My app"
subtitle="Hello world!"
onPress={() => {
api.action.presentModal()
}}
enabled
/>
)
}

export default reactExtension('pos.home.tile.render', () => {
return <TileComponent />
})

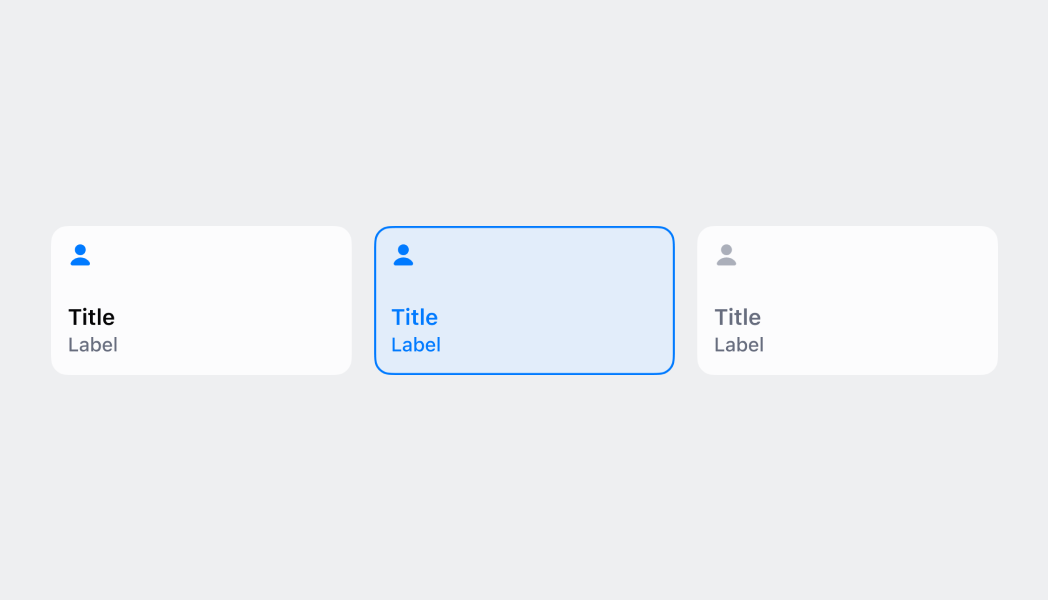

Preview
