Dialog
component

A dialog is a high-priority, intentionally disruptive message that requires action from the merchant before they can continue using POS.

Anchor to dialogDialog

Anchor to actionText
actionText
string
required

The text displayed in the primary action button of the dialog.

Anchor to isVisible
isVisible
boolean
required

Whether the dialog should be presented.

Anchor to onAction
onAction
() => void
required

A callback that performs when the action is triggered.

Anchor to title
title
string
required

The text displayed in the title of the dialog.

Anchor to content
content
string

The text displayed in the body of the dialog.

Anchor to onSecondaryAction
onSecondaryAction
() => void

A callback that is executed when the secondary action is triggered.

Anchor to secondaryActionText
secondaryActionText
string

The text displayed in the secondary action section of the dialog.

Anchor to showSecondaryAction
showSecondaryAction
boolean

Whether a secondary action displays.

Anchor to type
type

Determines the dialog’s appearance and function.

Was this section helpful?

Dialog example

import React, {useState} from 'react';
import {
Button,
Dialog,
Screen,
reactExtension,
} from '@shopify/ui-extensions-react/point-of-sale';

const SmartGridModal = () => {
const [visible, setVisible] = useState(false);

const handlePrimaryAction = () => {
setVisible(false);
console.log('Primary action pressed');
};

const handleSecondaryAction = () => {
setVisible(false);
console.log('Secondary action pressed');
};

return (
<Screen name="Dialog" title="Dialog Title">
<Button
title="Show dialog"
onPress={() => setVisible(true)}
/>
<Dialog
type="error"
title="Dialog title"
content="Dialog content"
actionText="Primary action"
onAction={handlePrimaryAction}
secondaryActionText="Secondary action"
onSecondaryAction={handleSecondaryAction}
isVisible={visible}
/>
</Screen>
);
};

export default reactExtension(
'pos.home.modal.render',
() => <SmartGridModal />,
);

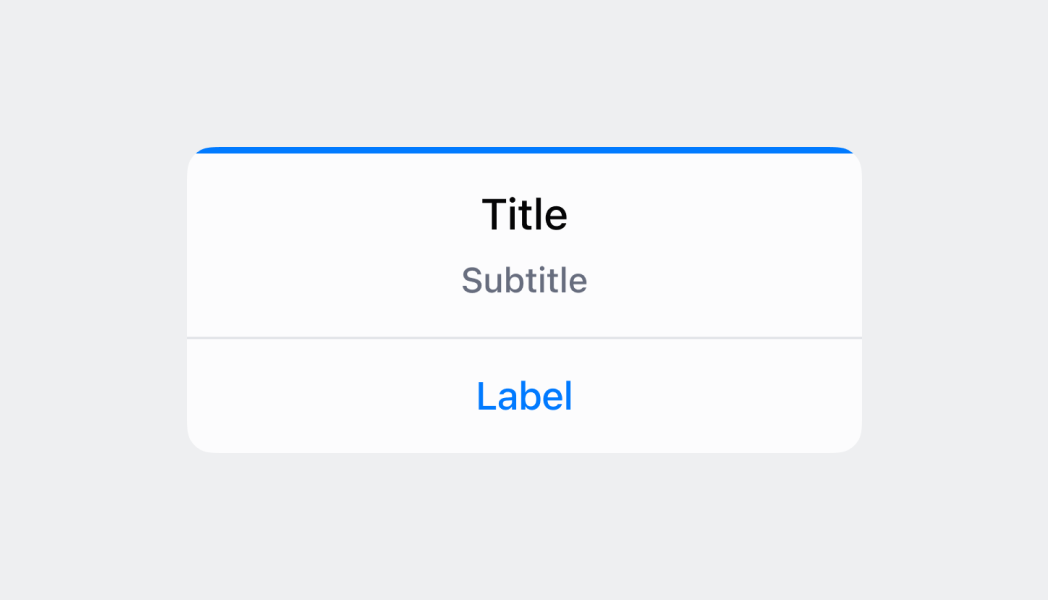

Preview

Anchor to guidelinesGuidelines

  • A dialog appears on top of the view the merchant is currently looking at.
  • When a dialog appears, the merchant can only interact with the buttons in the dialog and nothing else in the view.
  • A scrim is used to dim the UI in the background, using the surfaceBackground color set to 60% transparency.
  • Dialogs always include at least one action, two actions at most.
  • Buttons in dialogs work best when stacked to accommodate for longer translated content.
  • When buttons are displayed side-by-side, the primary action is on the right. When buttons are stacked, the primary action is at the top.
  • For buttons that initiate irreversible actions, the text should be displayed in "destructive" (red) state.
Was this section helpful?

Anchor to content-guidelinesContent guidelines

For confirmation dialogs, the header should be formed as a question that re-emphasizes the action being taken. Don't write: "Are you sure?"

✅ Log out of Shopify POS?
❌ Are you sure you want to log out of Shopify POS?
❌ You’re about to log out of Shopify POS

For confirmation dialogs, the primary button should clearly confirm the action while the secondary button should cancel the action with "Cancel":

✅ [Primary button] Log out
❌ [Primary button] Yes

For errors, the header should clearly communicate the problem rather than the solution (use the body and button to communicate the solution):

✅ [Header] Transaction declined
❌ [Header] Retry transaction

For informational dialogs where there's no action for the merchant to take but to acknowledge the message, the sole button should be "OK":

✅ [Button] OK
❌ [Button] Understood
❌ [Button] Dismiss
