Progress

Use to visually represent the completion of a task or process.

Anchor to progresspropsProgressProps

Anchor to accessibilityLabel
accessibilityLabel
string

A label to use for the Progress that will be used for buyers using assistive technologies like screen readers. It will also be used to replace the animated loading indicator when buyers prefer reduced motion.

Anchor to id
id
string

A unique identifier for the component.

Anchor to max
max
number
Default: 1

Define the maximum limit of the progress element. It must have a value greater than 0 and be a valid floating point number.

Anchor to tone
tone
Default: 'auto'

Set the color of the progress bar.

Anchor to value
value
number

Specify how much of the task that has been completed. It must be a valid floating point number between 0 and max, or between 0 and 1 if max is omitted. When undefined, the progress bar is indeterminate; this indicates that an activity is ongoing with no indication of how long it is expected to take.

Was this section helpful?

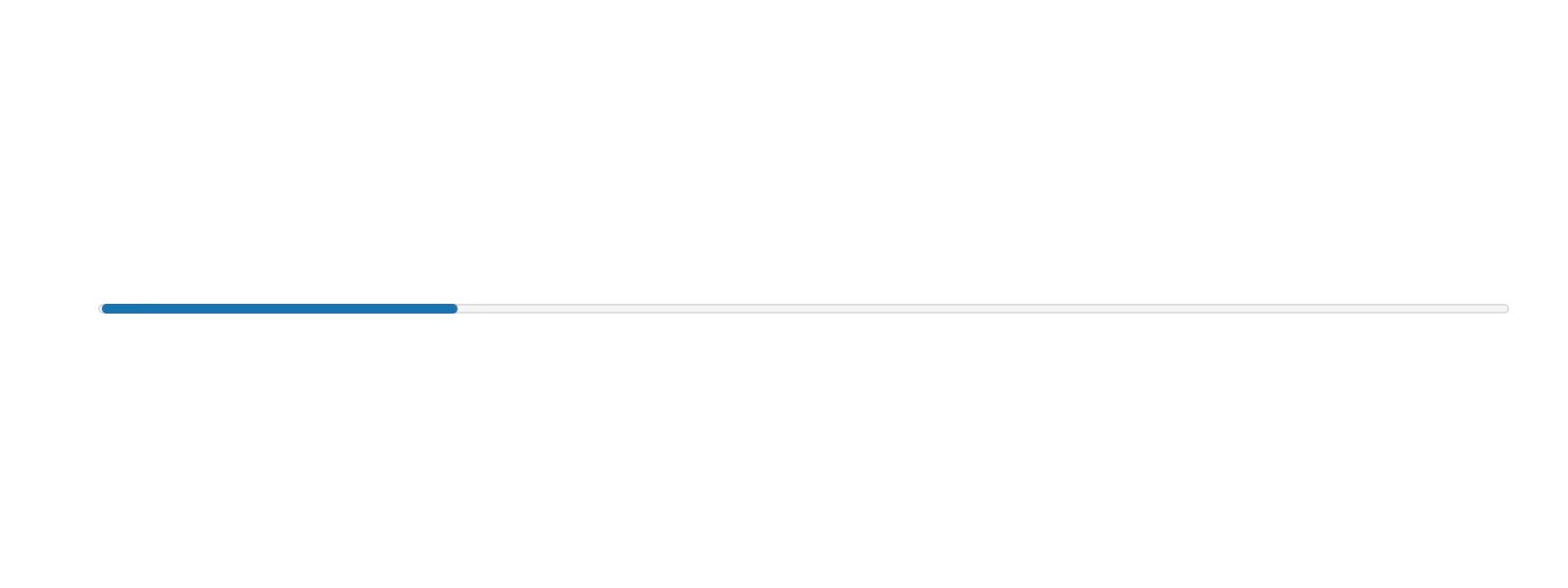

Indeterminate state

import {
reactExtension,
Progress,
} from '@shopify/ui-extensions-react/checkout';

export default reactExtension(
'purchase.checkout.block.render',
() => <Extension />,
);

function Extension() {
return (
<Progress accessibilityLabel="Loading" />
);
}

Preview

Anchor to best-practicesBest Practices

Use components like TextBlock or Text, along with the Progress component, to display text indicating the status of the progress bar.

Loading states

For loading states, add text to reassure the user that the progress bar is not frozen.

A progress bar with

Error states

For error states, add text or a Banner to describe the error and next steps. Use the critical tone property to convey urgency.

A progress bar with error text that says

Visualize a goal

Use the Progress component to visualize a goal that's valuable to the customer.

Here's an example of using a progress bar to show a customer's progress toward the next rewards tier:

A progress bar in customer accounts, showing that the customer is on their way to reaching the Botanical maven rewards tier.

Here's an example of using a progress bar to show how much more a customer needs to spend to get free shipping:

A progress bar at checkout, showing that the customer is $43 away from free shipping.

Was this section helpful?

Anchor to examplesExamples

Anchor to example-determinate-stateDeterminate state

In a determinate state, TextBlock or Text components can be used to communicate what the progress bar is tracking, and to set clear expectations about the current progress.

Was this section helpful?

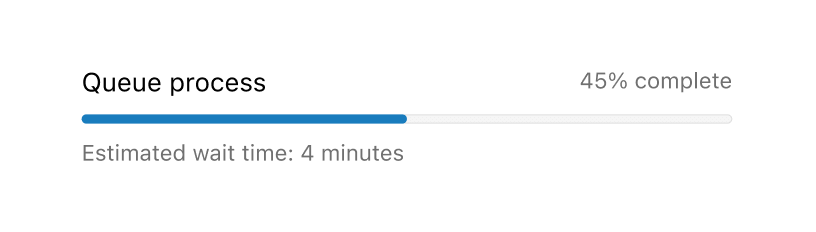

Determinate state

import {
reactExtension,
BlockStack,
Grid,
Progress,
Text,
TextBlock,
} from '@shopify/ui-extensions-react/checkout';

export default reactExtension(
'purchase.checkout.footer.render-after',
() => <Extension />,
);

function Extension() {
const label = 'Queue process';
return (
<BlockStack>
<Grid columns={['fill', 'auto']}>
<Text>{label}</Text>
<Text appearance="subdued">
45% completed
</Text>
</Grid>
<Progress
value={45}
max={100}
accessibilityLabel={label}
/>
<TextBlock appearance="subdued">
Estimated wait time: 4 minutes
</TextBlock>
</BlockStack>
);
}

Preview

Anchor to relatedRelated

ComponentSpinner
